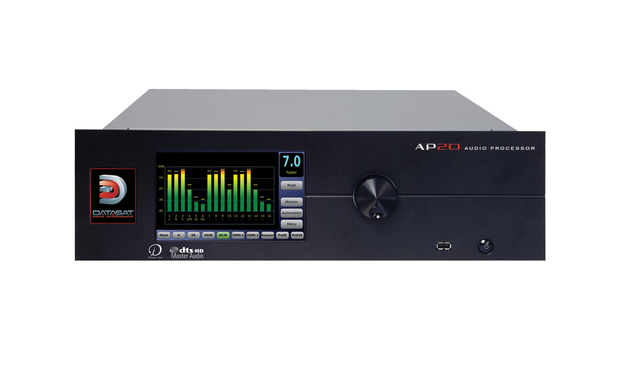

Звуковой процессор Datasat AP20

Входы:

Digital Audio:

• Channels: 8 (Optional Upgrade to 16)
• Connector: DB25 (Female) connector (1-8) Upgrade Option: DB25 (Female) connector (9-16)
• Digital Format: AES/EBU
• Sample Rates: 44.1kHz, 48kHz, 96 kHz and 192kHz

Other Digital Audio:

• Connector: Two TOSLINK (optical S/PDIF) and 1 coaxial (S/PDIF)

Analog Audio:

• Channels: 8 balanced that are fully routable as to output, can be connected unbalanced
• Connector: DB25 (Female)
• Impedance: 10k ohms
• Sensitivity: 300mV rms

Other Analog Audio:

• Channels: 2 stereo single ended and routable (non-sync) input pairs
• Connector: 4 RCA jacks
• Impedance: 10k ohms
• Sensitivity Adjustable: -16dBv to -4dBv

Микрофон:

• Single channel -68dBv to -8dBv input (XLR female connector) with switchable +48V phantom power HDMI Audio & Video Inputs
• Audio Channels: Up to 8 (PCM, DTS-HD Master Audio & Dolby AC3)
• Connectors: 5 HDMI connectors (ie: 4 switched as inputs and 1 as output – Video passed thru)
• HDMI 1.3 compliant digital audio with video pass-thru

Выходы:

Digital Audio Outputs:

• Channels: 8 (fully routable as to input) (Optional Upgrade to 16)
• Connector: DB25 (Male) connector (1-8) Upgrade Option: DB25 (Female) connector (9-16)
• Digital Format: AES/EBU
• Sample Rates: 48kHz, 96 kHz and 192kHz

Analog Audio Outputs

• Balanced (can be connected unbalanced or single ended) - Channels: 8 (fully routable as to input), common mapping with Digital Outputs (Optional Upgrade to 16) - Connectors: DB25 (Male) (1-8) Upgrade Option: DB25 (Male) connector (9-16) - Level: -10dBu with Fader at 7, +26dBu max (balanced)
• Connector: 1 single ended RCA output, channel-selectable to drive an external monitor. Adjustable Levels, to 300mV rms
• Connector: 1 single ended RCA output, summed outp
